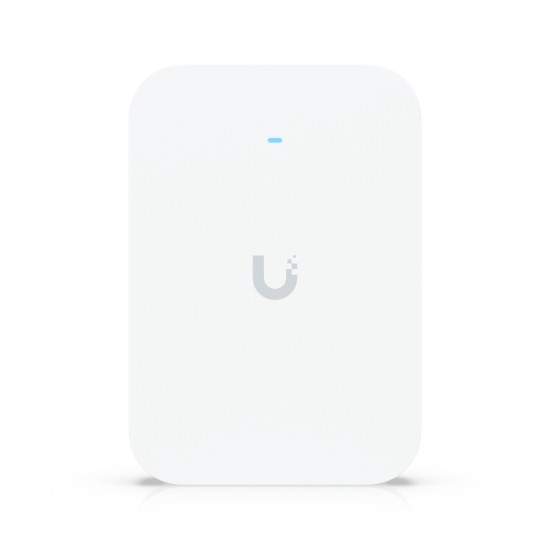

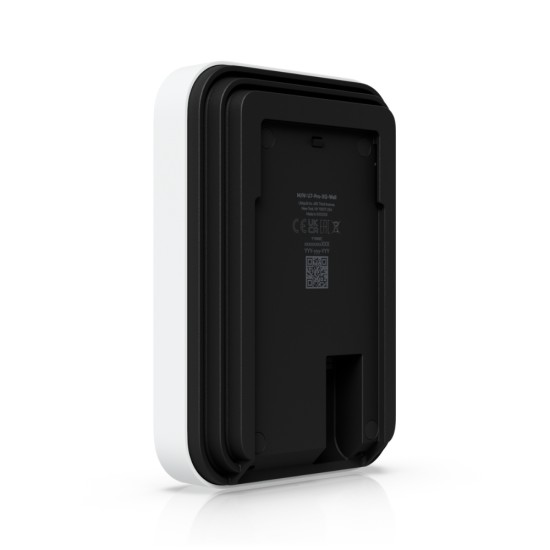

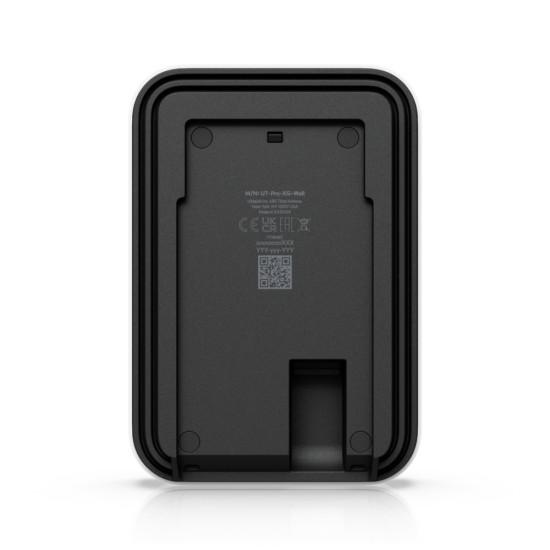

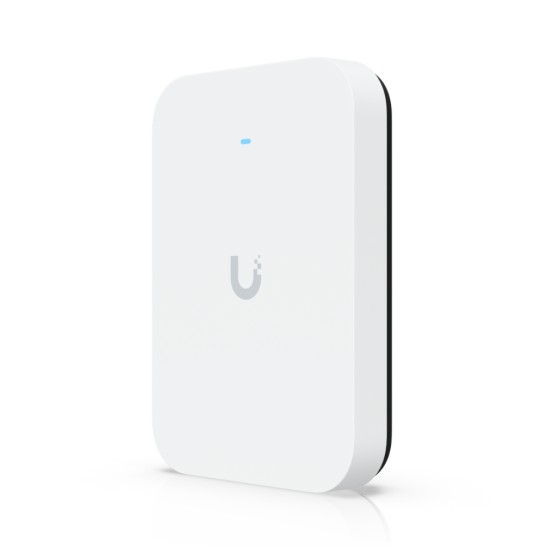

Ubiquiti {U7-PRO-XG-WALL} UniFi AP U7 Pro XG Wall

The Ubiquiti U7 Pro XG Wall is a wall-mounted WiFi 7 access point with tri-band connectivity across 2.4, 5 and 6 GHz. Featuring six spatial streams and a 10 GbE uplink, it supports over 300 connected clients with a coverage area of up to 140 m².

Its Ethernet port supports 1/2.5/5/10 GbE connections, while PoE+ delivers power and data through a single cable. Managed through UniFi Network, the U7 Pro XG Wall offers advanced wireless management, guest access controls and roaming features for business and residential installations.

• Tri-band WiFi 7 with six spatial streams and 2 x 2 MU-MIMO on each band.
• Maximum wireless data rates of 5.8 Gbps on 6 GHz, 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz.
• Supports channel widths up to 320 MHz on 6 GHz.

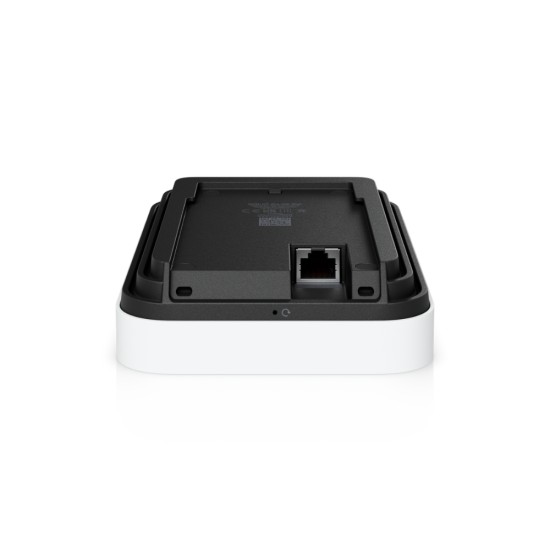

• One RJ45 uplink port supporting 1/2.5/5/10 GbE.
• Coverage area up to 140 m² and support for 300+ clients.
• PoE+ powered with a maximum power consumption of 22W.
• Wireless meshing, band steering and 802.11k/v/r roaming support.
• Captive portal with custom branding, voucher, payment-based and password authentication, plus external portal support.
• Guest and client isolation, WiFi speed limiting and WiFi schedules.
• Private Pre-Shared Key (PPSK), RADIUS over TLS and dynamic RADIUS-assigned VLAN support.

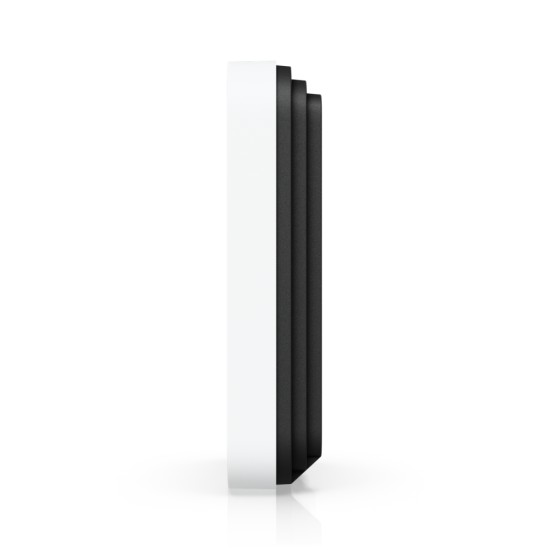

• Compact wall-mounted design measuring 155 x 108 x 33.5 mm.
• Requires UniFi Network version 10.0 or later.
• NDAA compliant.
