Key features:

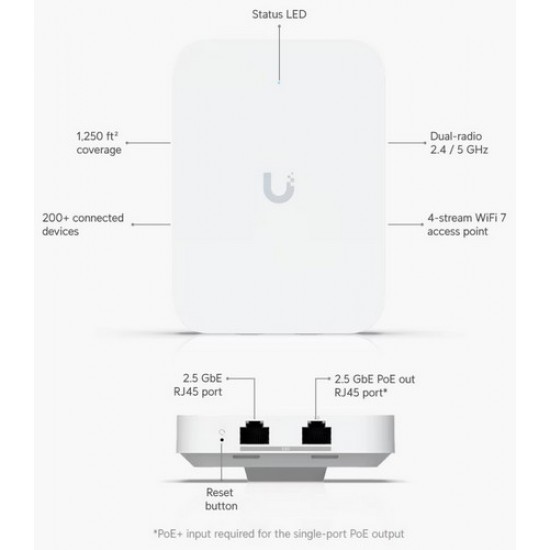

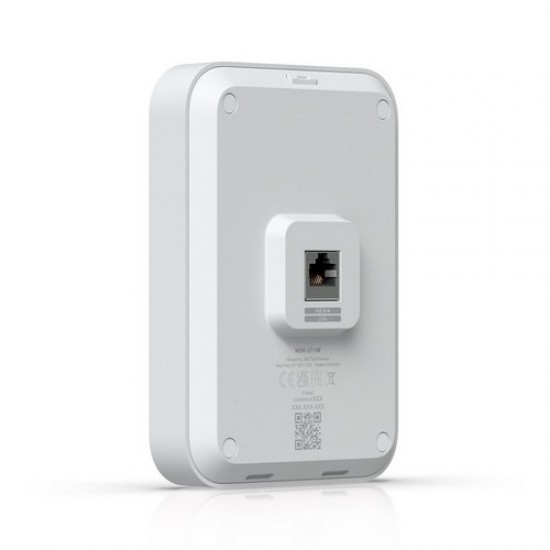

The U7-IW is a WiFi 7 access point from the UniFi family, designed for in-wall installation. Dual-band WiFi 7 offers a maximum modulation speed of up to 4.3Gbps in the 5 GHz band and up to 688Mbps in the 2.4 GHz band. For network connectivity, it features a rear (1) 2.5G ETH port, which also serves as a power input via PoE 802.3af/at or passive PoE 42.5 to 57V DC. Even after installation, you will still have access to (2) 2.5G ETH ports, one of which supports PoE-OUT for connecting an additional device. If using the PoE-OUT function, powering by PoE+ 802.3at 30W is required.



Interfaces: (3) 100/1000/2500Mbps
Antenna Type: Built-in omni-directional antennas
Antenna Gain: 2.4 Ghz 4,dBi  5Ghz 8
Input Power Supply: 802.3af, 802.3at, 42 .. 57V DC
External Power Supply: No
Mounting: in-Wall
Wireless Standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
Data Rate: 2.4 GHz 688 Mbps, 5 GHz, 4.3 Gbps
MIMO: Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2)
Max. Power Consumption: <=13W
Operating Temperature: -30C to +40C

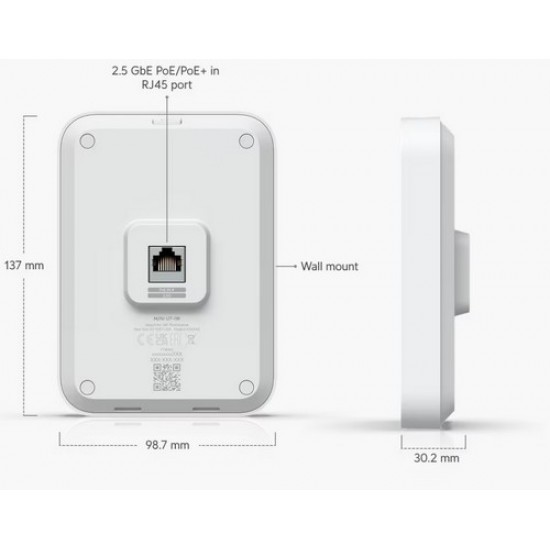

Dimensions (W x D x H): 9.9 cm x 13.7 cm x 3 cm
Warranty: 2 Years

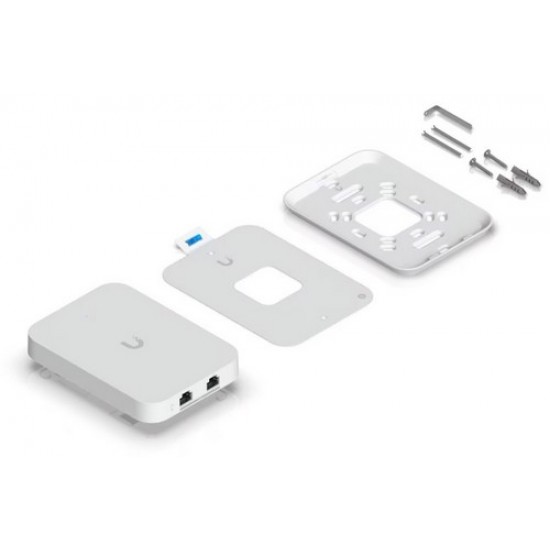

Package contents:

  • Device
  • Wall-mounting plate
  • Screws

Datasheet: U7-IW

Retail price 155.50€ (185.05€ Inc. VAT)
  • Stock: In Stock (10)
  • Model: U7-IW
  • Weight: 1.00kg
  • SKU: U7-IW
  • MPN: U7-IW
