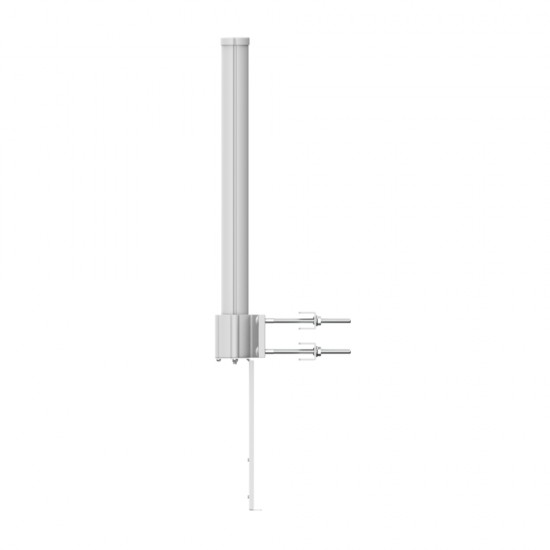

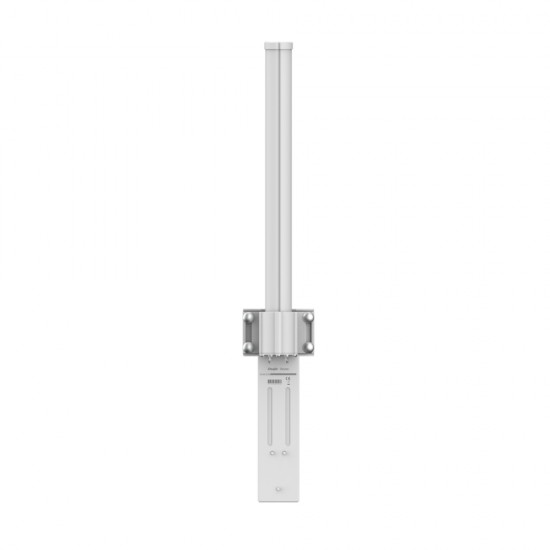

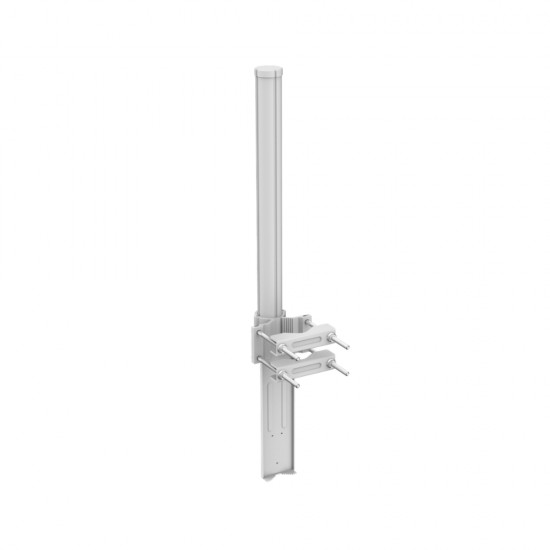

Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)

Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)
Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)
Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)
Out Of Stock
Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)
Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)
Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)
Reyee RG-ANT13-360, 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges (Single)

Product Information

Model RG-ANT13-360
Accessory No
Product Type Antenna

Hardware Specifications

Model RG-ANT13-360
Antenna
Antenna 5 GHz: 2 x 2 omnidirectional antenna, horizontal: 360°, vertical: 7°
Antenna gain (5 GHz) 13 dBi
Antenna horizontal orientation 360°
Antenna vertical orientation 7°
Environment and Reliability
Mounting options Pole
Operating temperature −40°C to +80°C (−40°F to +176°F)
Storage temperature −40°C to +85°C (−40°F to +185°F)
Operating humidity 5% RH to 95% RH (non-condensing)
Storage humidity 5% RH to 95% RH (non-condensing)
Operating altitude −500 m to +5,000 m (−1,640.42 ft. to +16,404.20 ft.)
Storage altitude −500 m to +5,000 m (−1,640.42 ft. to +16,404.20 ft.)
MTBF 400,000 hours (about 45 years)
Cooling Natural cooling
IP rating IP55
Applicable Scenarios
Applicable Scenarios WISP
Dimensions and Weight
Weight 1.06 kg (2.34 lbs) (without packaging materials)
Shipping weight 2.35 kg (5.18 lbs)
Product dimensions (W x D x H) 120 mm x 82 mm x 769 mm (4.72 in. x 3.23 in. x 30.28 in.) (excluding mounting bracket)
Package dimensions (W x D x H) 905 mm x 155 mm x 115 mm (35.63 in. x 6.10 in. x 4.53 in.)
Color Elegant white

Package Contents

Model RG-ANT13-360
Manual
User Manual 1
Accessories
RF cable 2
Mounting bracket 2
Screw 4 x Hexagon Flange Nut
4 x Cup Head Square Neck Bolt with Large Head
Protective cover 1
Device
Device 1
Retail price Price not available
  • Stock: No Stock
  • Model: RG-ANT13-360
  • Weight: 4.00kg
  • SKU: RG-ANT13-360
  • MPN: RG-ANT13-360
