Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE

Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE
Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE
Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE
NEW SHIPMENT EXPECTED ON: 24.04.2026 Out Of Stock
Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE
Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE
Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE
Optical Module 1.25G SFP, WDM(BiDi), Singlemode, Tx1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE

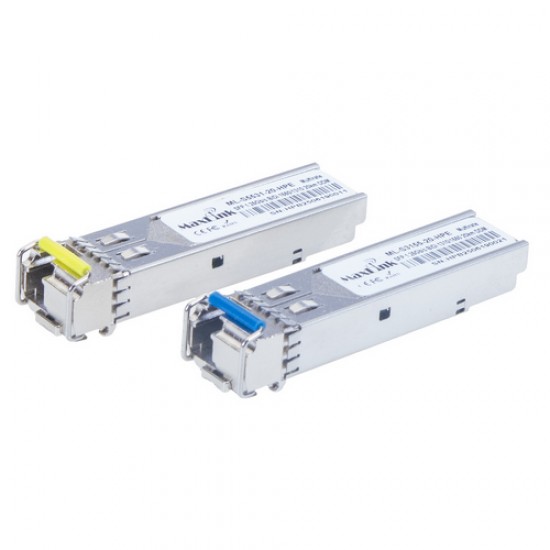

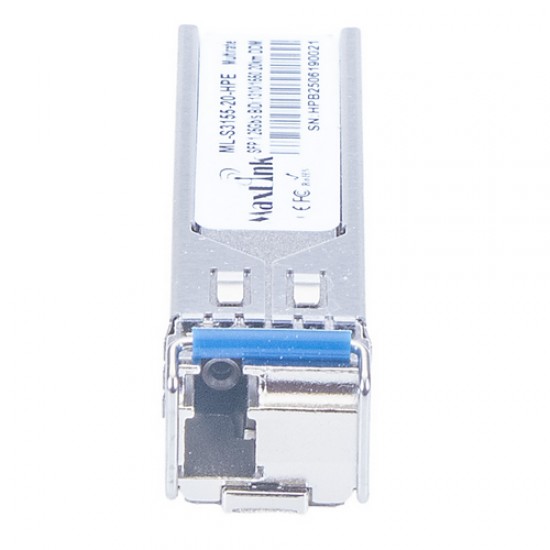

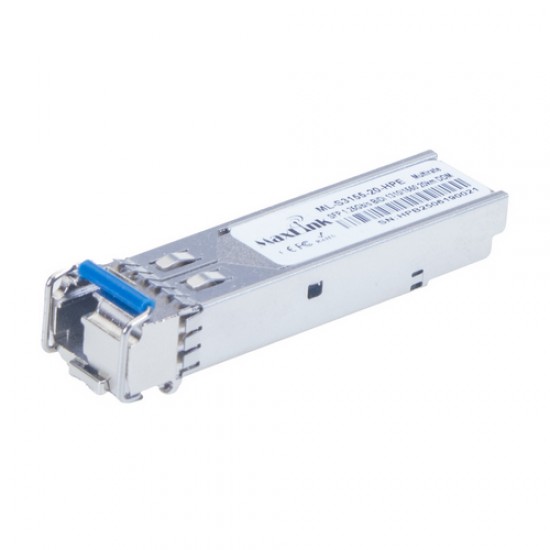

Maxlink ML-S3155-20-HPE is a 1.25G SFP WDM module with a Tx 1310 / Rx 1550 wavelength, a single LC connector, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP module supports monitoring (DDM).

The LC connector in the SFP module uses UPC polishing.

HPE Compatibility

The modules are compatible with HPE Aruba Networking ProCurve AOS-S 2530/2540/2930/3810 and AOS-CX 6200/6300/6400/83xx/84xx/93xx/81xx switches.



For cable type: Singlemode
Transmission Speed:  1.25 Gbps
Wavelength - Tx/Rx [nm]: 1310/1550
Distance [km]: 20
Polishing type: UPC
Transfer Type: WDM
Tx power [dBm]: -9 up to -3
Receiver sensitivity [dBm]: -23
Optical Connectors: 1x LC
Operating temperature [°C]: 0 up to 70
Compatibility: HPE
DDMI - diagnostics: Yes



Retail price Price not available
  • Stock: No Stock
  • Model: ML-S3155-20-HPE
  • Weight: 0.05kg
  • SKU: ML-S3155-20-HPE
  • MPN: ML-S3155-20-HPE
